DMF-Y electromagnetic pulse valves are embedded valves (also called submerged valves) which are directly installed on the manifold box. They have better flow characteristics and operated with a reduced pressure loss. Therefore they are suitable for places with lower air pressures.

Description

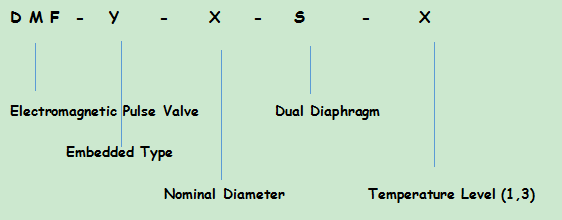

Type Definition

Specification

Type DMF-Y-25 DMF-Y-40S DMF-Y-50S DMF-Y-62S
Diaphragm Diameter (mm) Ø96 Ø112 Ø160 Ø188
Flow Coefficient(Kv/Cv) 28.82/33.63 47.36/55.27 62.09/72.46 136.58/159.39
Blowing Area (m2) 8-10 12-16 18-28 27-38
Air Inlet/Outlet Size G1’’ G1½’’ Ø60 Ø75
Weight (kg) 0.8 1.2 2.5 3.0



Type DMF-Y-76S DMF-YA-76S DMF-YB-76S DMF-Y-102S
Diaphragm Diameter (mm) Ø202 Ø195 Ø202 Ø255
Flow Coefficient(Kv/Cv) 165.84/193.54 166.2/194.0 165.84/193.54 268.29/313.09
Blowing Area (m2) 37-65 37-65 37-65 70-90
Air Inlet/Outlet Size Ø89 Ø89 Ø89 Ø114
Weight (kg) 3.7 2.9 2.95 5.65



Type DMF-Y-102SA DMF-Y-102SE
Diaphragm Diameter (mm) Ø204 Ø225
Flow Coefficient(Kv/Cv) 242.35/282.82 252.1/294.2
Blowing Area (m2) 55-80 70-90
Air Inlet/Outlet Size Ø102 Ø114
Weight (kg) 3.3 5.0
